Exercises

Let’s explore the solution in a bit more detail.

Vertical versus horizontal permeability

Make a copy of your case and repeat the analysis in the vertical direction. You will need to

  1. adapt the face types in blockMeshDict

  2. modify the boundary conditions in 0/p and 0/U

  3. modify the post-processing script to compute vertical velocity

You should get something like this:

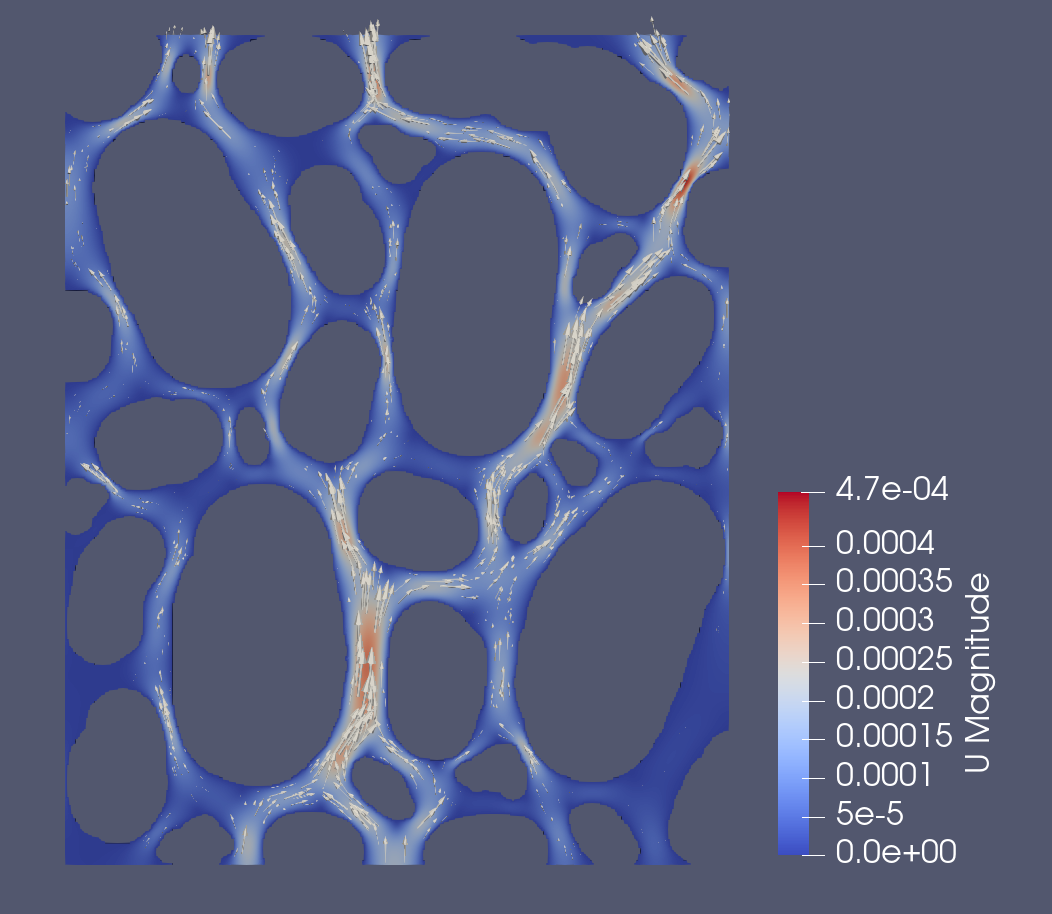

../../_images/DRP_vert_perm.png

Fig. 16 Pore-level flow in the vertical direction.

Changes to the geometry

Check if/how the solution changes if you distort the mesh. For example, squeeze it a bit in the vertical direction by modifying the transformPoints "scale=(1e-6 1e-6 1e-6)" statement. Also check if the absolute dimensions matter!

Numerical models should (usually) not surprise us. So before running the different case, ask yourself what you expect.

  • will permeability increase or decrease if you squeeze the sample, for example by half in one direction?

  • Do the absolute dimension matter?

Adding scalar transport

In the next session, we will progress towards submarine hydrothermal systems and will explore Darcy flow in detail. In preparation for that, let’s explore how scalar transport (like advecting temperature) would look like in our synthetic pore model.

OpenFOAM’s scalarTransportFoam application solves the 3-D advection-diffusion equation for a given velocity field:

(17)\[ \frac{\partial T}{\partial t} = -\nabla \cdot ( \vec{U} T ) + \nabla \cdot (D_T \nabla T) + S_T,\]

with T being the transported scalar, DT the diffusivity with units of \(m^2/s\) , and ST is a source term. Note that it is tempting to think of T as temperature but here it is simply a transported scalar (like a solute in groundwater flow). The energy conservation equation written in terms of temperature looks slightly different, as we will learn in the next chapter.

The key source code of scalarTransportFoam looks like this:

...
fvScalarMatrix TEqn
(
    fvm::ddt(T)
    + fvm::div(phi, T)
    - fvm::laplacian(DT, T)
    ==
    fvModels.source(T)
);

TEqn.relax();
fvConstraints.constrain(TEqn);
TEqn.solve();
fvConstraints.constrain(T);
...

Since we have already computed the velocity field (and made the mesh etc.), we can now use our results as the starting point for a scalarTransportFoam case. The foam tuturials are always a good starting point for a new case. scalarTransportFoam is handled in $FOAM_TUTORIALS/basic/scalarTransportFoam/pitzDaily/ . Let’s copy it over to our working directory, add our velocity field and mesh, and modify the control dictionaries.

In a terminal in the container (e.g. in Visual Studio Code) do this:

cd $HOME/HydrothermalFoam_runs
cp -r $FOAM_TUTORIALS/basic/scalarTransportFoam/pitzDaily/ ./DRP_transport
cp -r ./DRP_permeability_2D/constant/polyMesh ./DRP_transport/constant/
cp ./DRP_permeability_2D/537/U ./DRP_transport/0/

This assumes that you used the same case and directory names; if not, modify the names accordingly. Note that we copy the velocity field of the converged solution (here iteration 537, the last directory written by simpleFoam), not the initial field in 0/U, which is zero everywhere.

Now open the files in Visual Studio Code and modify them:

  • 0/T: the boundary conditions must use the patch names of our mesh. Set “temperature” to 1 at the inlet (fixedValue) and use zeroGradient at the outlet and on the solids. top and bottom are of type symmetryPlane, and frontAndBack is empty. Look at 0/p of the DRP case if you are unsure about the names.

  • constant/physicalProperties: set the diffusivity to something small, like \(10^{-12}~m^2/s\), so that the problem is advection-dominated. Keep the format of the line: DT DT [0 2 -1 0 0 0 0] 1e-12;

  • system/controlDict: set endTime to 20, deltaT to 0.1, and writeInterval to 3. With writeControl timeStep, the write interval counts time steps, so results are written every 0.3 s. These values are somewhat arbitrary, but give a reasonable solution for our synthetic setup.

That’s it, run it and explore the solution!

Would the temperature evolution in our rock sample look like this? What would the grains do to the speed of the thermal front?

Tip

Have a look at the range of T: you will find values slightly below 0 and above 1, although the inlet value is 1. These over- and undershoots come from the numerical scheme for the advection term, not from the physics. We will come back to this when we look at advection schemes later in the course.
